Drilling stabilizer is an important tool to control hole deviation in petroleum and gas exploration drilling process. The types of it can be divided into drill string type and near bit type. At present, we developed HF3000 and HF5000 type stabilizer, which are widely used in international drilling operation.

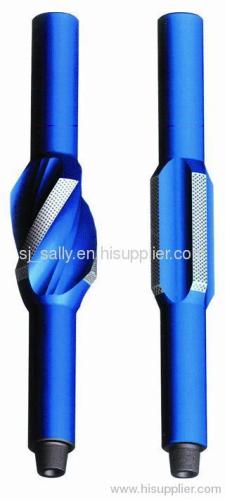

Integral straight blade stabilizer,Integral 3-straight rib stabilizer,integral 4-straight rib
stabilizer,and Integral multi-straight rib stabilizer ,which working surface are provided with
carbide insert compound and overlay,etc. The body is made from high strength alloy steel
of heat treated.

Type

Working O.D.(in)

O.D. of both ends(mm)

I.D. (mm)

Length (mm)

Length (mm)

Connection

short type

long type

string

near bit

near bit

string type

near bit

string

top

down

top

down

WZ152

6''

121

51

300- 500

800-900

1000-1100

1200-1400

1400-1600

NC38

NC38

NC38

3-1/2REG

WZ158

6-1/4''

WZ165

6-1/2''

WZ190

7-1/2'

159 165 178

57 71

1000

1600

1800

NC46

NC46

NC46

4-1/2REG

WZ200

7-7/8''

WZ213

8-3/8''

400 500 600

1000-1200

1600-1800

1800-2000

NC46 NC50

4-1/2REG

WZ215

8-1/2''

WZ222

8-3/4''

WZ241

9-1/2''

178 197

71

400- 600

800-1000

1000-1200

1600-1800

NC50

NC50

NC50

6-5/8REG

WZ245

9-5/8''

WZ251

9-7/8''

WZ311

12-1/4''

203 229

76

400- 600

1000 1200

1200 1500

1800 2000

NC56 6-5/8REG

6-5/8REG

WZ445

17-1/2''

400- 600

1200-1300

1200-1300

2000-2200

2000-2200

NC61  7-5/8REG
